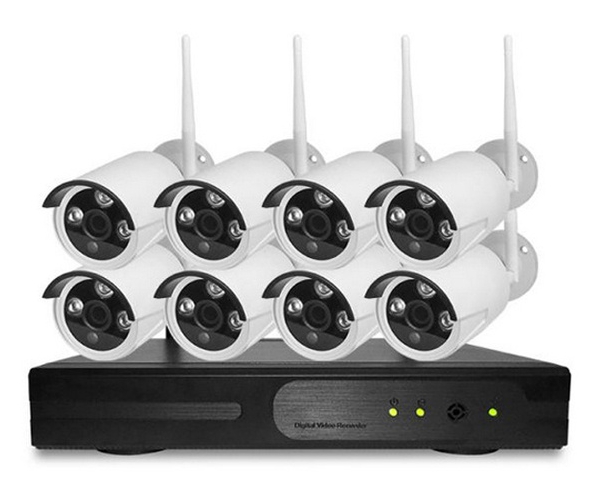

| Wireless NVR |
| Model |
TP-WF08-KIT |
| Video input |
8CH |
| HDMI output |
1ch，resolution：1024x768, 1280x1024,1366x768, 1440x900,1920x1080p |
| VGA output |
1ch，Resolution：1024x768, 1280x1024,1366x768, 1440x900,1920x1080p |
| Recording Resolution |
D1/960H/720P/960P/1080P |
| Playback |
4ch |
| Hard disk interface |
1 SATA interface,each interface support max 6TB HDD |
| Network interface |
1，RJ45 10M/100M self-adaptive Ethernet Port |
| USB interface |
1，USB 2.0 |
| Audio interface |
1ch 3.5inch earphone port |
| Power |
DC 12V |
| Power comsumption（exclude hard disk） |
≤5W |
| Wireless IPC |
| Image sensor |
1/4”CMOS |
1/3” CMOS |
1/3”CMOS |
| Resolution |
1280 x 720 16 : 9 |
1280 x 960 4:3 |
1920x1080 16:9 |
| Nimum illumination |
Color: 0.1 Lux,B/W: 0.01 Lux |
| Lens |
4/6mm |
| Code stream |
Dual stream 1280x720@15fps 640x360@15fps |
Dual stream 1280x960@15fps 640x360@15fps |
Dual stream
1920x1080@15fps 640x480@15fps |
| Power supply |
DC12V |
| Network Interface |
RJ45 / WIFI 802.11b/g/n |
| Audio |
Audio line output （optinal) |
