TP-NT3028MN |
| |
| From:Topview |
|
|
Model No
|
TP-NT3028MN
|
TP-NT3037MN
|
TP-NT3018MN
|
|
Description
|

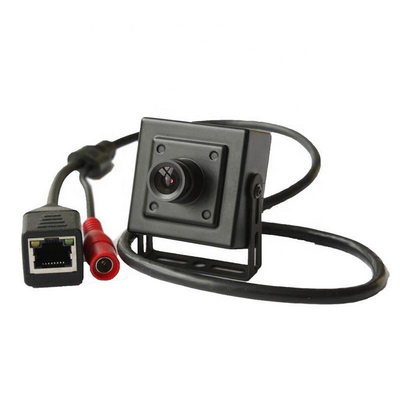

Mini IP Camera
|
|
TV System
|
NTSC / PAL
|
|
Video Out
|
1 x RJ45 port
|
|
Chipset Solution
|
1/2.8" CMOS 3.0 MP
|
|
Effective Pixels
|
2048(H)*1536(V)
|
|
Minimum Illumination
|
0.001Lux
|
|
Lens
|
2.8mm
|
Pin-hole 3.7mm
|
Panoramic1.8mm
|
|
Sync,System
|
Internal Synchronization
|
|
Network
|
1 RJ45 Ethernet interface, 10/100M adaptation
|
|
Protocol
|
Onvif
|
|
Scanning System
|
2:1 Interface
|
|
Shutter Speed
|
1/60~1/100,000sec (N), 1/50~1/100,000sec (P)
|
|
S/N Ratio
|
> 58dB
|
|
DWDR
|
YES
|
|
POE
|
Yes
|
|
3D-NR
|
YES
|
|
AI Defog
|
YES
|
|
AI humanoid Detection
|
YES
|
|
Power Source
|
DC12V
|
|
Consumption
|
<5W
|
|
Operating Enviroment
|
-20 degree~60 degree
|
|
Working Humidity
|
<90%
|
|
Size(mm)
|
40mm x 27mm x 40mm
|
|
Weight(kg)
|
180g
|
|
|
|
