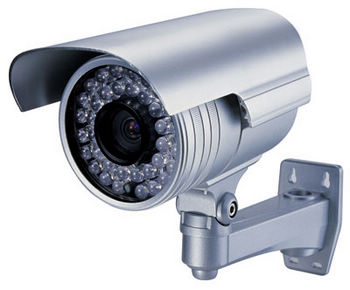

TP-7149 |
| |
|
| MODEL |
TP-7149 |
TP-7146 |
| Pickup device |
1/3 Sony CCD |
| Number of pixels |
PAL:752(H) *582(V) NTSC:752(H) *492(V) |
PAL:512(H) *582(V) NTSC:512(H) *492(V) |
| System of signal |
NTSC/PAL |
| Horizontal resolution |
540TV Line |
420TV Line |
| Minium illumination |
0Lux/F1.2 |
| Backlight compensation |
Auto |
| White balance |
Auto |
| Electronic shutter |
1/50(1/60)~1/100,000sec |
| Lens |
4-9mm(Manual varifocal lens) |
| S/N ratio |
>52dB |
>48dB |
| Gamma correction |
>0.45 |
| Operation Temperature |
-70 |
| Sync.system |
Internal |
| Video output |
1.0vp-p/75 |
| Power supply |
DC12V,800mA |
| Wavelength |
850nm |
| Dimensions(mm) |
186(L)*96(W)*93(H) |
| Weight(g) |
1281g |
| LEDS |
35(F8) |
| OR viwe distance |
35-50m |
| Waterproof Rate |
IP67 | |
|
|
