1/3" SONY Super HAD II CCD,
Resolution 520TVL, Color to B/W,
Min. Illumination 0.1 LUX/F1.2,
Multi-Language OSD Menu,
Dual Voltage (DC12V/AC24V),
Korea 4-9mm Auto-Iris Lens,
Camera Control Via Coaxial cable (CCVC) Function Optional
|

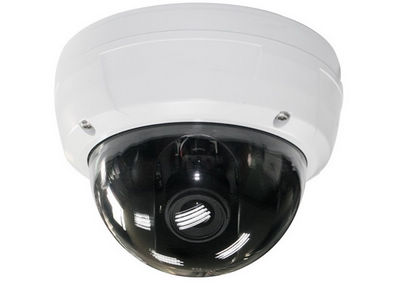

MODEL |
TP-V366 |
|
Signal System |
NTSC |
PAL |
|
Image Sensor |
1/3'' SONY Super HAD II CCD |
|
Synchronization |
2:1 Interlace |
|
Total Pixels |
811(H)508(V) |
|
|
Effective Pixels |
768(H)494(V) |
|
|
Horizontal Resolution |
520 TV Lines |
|
Electronic shutter |
1/60 1/100,000 sec |
|
|
S/N |
48 dB ( AGC OFF ) |
|
Sensitivity |
0.1LUX/F1.2 |
|
Synchronization |
2:1 Interlace |
|
Vedeo Output |
1.0Vp-p/75 |
|
White Banlance |
Auto/Manual/fixed/Auto-tracking |
|
D/N |
Auto/Color /B/W |
|
Gain Control |
ON/OFF |
|
Backlight Compensation |
ON/OFF |
|
Motion Detection |
ON/OFF(64 zone) Detection sensitivity 0-255 |
|
Privacy |
ON/OFF(4 zone) |
|
Mirror |
ON/OFF |
|
Camera Control |
Camera Control Via Coaxial cable (CCVC) Function |
|
Control |
Built-in EN/CN(Simplified)/CN(Traditional)/KO/JA Menu |
|
Menu |
0-1(0.05 interval) |
|
Contrast |
0-255 |
|
Sharpness |
0-31 |
|
CB Gain |
0-255 |
|
CR Gain |
0-255 |
|
Input Voltage |
DC12V10% AC24V10% |
|
Power Consumpton |
2W |
|
Lens |
Korea 4-9 mm Auto Iris lens |
|
Waterproof Ratio |
IP65 |
|
Operating Temp |
-10 +50 |
|
Storage Temp |
-20 +60 |
|
Dimmension |
135mm()*100mm(H) | |
