TP-Z419 |
| |
|

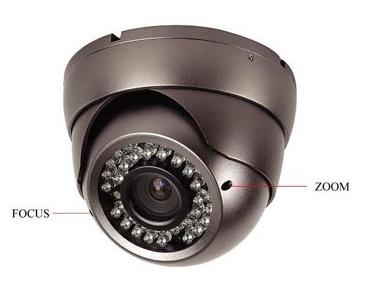

| IR VANDAL-PROOF DOME CAMERA (4-9mm Manual varifocal lens) |
| |
| SPECIFICATIONS: |
| |
| MODEL |
TP-Z419 |
TP-Z418 |
| Pickup device |
1/3 Sony CCD |
| Number of pixels |
PAL:512(H)*582(V) NTSC:512(H) *492(V) |
| System of signal |
NTSC/PAL |
| Horizontal resolution |
540TV Line |
420TV Line |
| Minium illumination |
0Lux/F1.2 |
| Backlight compensation |
Auto |
| White balance |
Auto |
| Electronic shutter |
1/50(1/60)~1/100,000sec |
| Lens |
Standard Lens:4-9mm |
| S/N ratio |
>52dB |
>48dB |
| Gamma correction |
>0.45 |
| Operation Temperature |
-70 |
| Sync.system |
Internal |
| Video output |
1.0vp-p/75 |
| Power supply |
DC12V,400mA |
| Dimensions(mm) |
119(D)*100(H) |
| Weight(g) |
800g |
| Leds |
42(φ5) |
| IR view distance |
30m-50m | |
|
|
