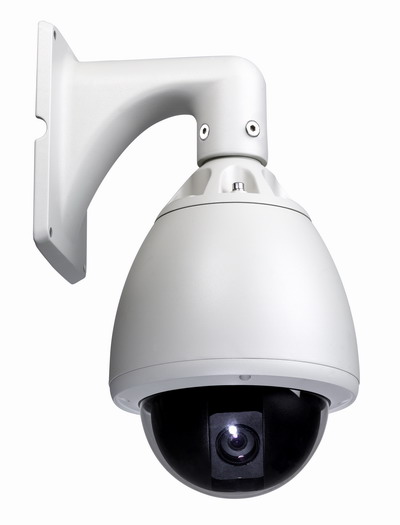

6’HIGH SPEED DOME
6寸高速球
产品特点（PRODUCT FEATURE）：
★ 采用优质铝材，精细加工工艺，良好散热设计
★ 高速运行的视频冻结功能
★ 视频宽动态调节功能
★ 内置浪涌及雷击保护装置
★ 128个预置位
★ 集成多协议解码控制器
★ IP65防水等级，室内外适用
★ Use high-quality aluminum material and fine processing technology,well design for heat elimination
★ Features high-speed operation of the video to freeze
★ Video Wide Dynamic adjustment function
★ Built-in surge and lightning protection devices
★ 128 preset positions
★ Integrated multi-protocol decoder controller
★ Ip65 waterproof,indoor and outdoor application
SPECIFICATIONS 技术指标：
|
MODEL 型号 |
TP-SD06SM |
|
成像器件 Pickup device |
1/4 Sony CCD |
|
像素 Number of pixels |
PAL:752(H)×582(V) NTSC:752(H)×492(V) |
|
信号制式 System of signal |
NTSC/PAL |
|
水平解晰度 Horizontal resolution |
480TV Line |
|
最低照度 Minium illumination |
0.01Lux/F1.2 |
|
镜头 Lens |
3.9-85.8mm |
|
背光补偿 Backlight compensation |
Auto/自动 |
|
水平转速 Pan Speed |
0-180°/S |
|
垂直转速 Tilt Speed |
0-80°/S |
|
电子快门 Electronic shutter |
1/50（1/60）~1/100,000sec |
|
白平衡 White balance |
Auto/自动 |
|
信噪比 S/N ratio |
＞48dB |
|
伽玛校正 Gamma correction |
>0.45 |
|
工作温度 Operation temperature |
-20℃~50℃ |
|
工作电压 Operation Voltage |
DC24V,2A |
|
尺寸 Dimensions(mm) |
218(D)×281(H) |
|
重量（公克） Weight(g) |
3500g | |
